1. Magnification selection factors
To choose the appropriate magnification for dental loupes, multiple factors such as treatment type and working distance must be comprehensively considered.
• Treatment type: The appropriate magnification varies depending on the characteristics of the treatment, such as the size of the field of view and the precision required.
Lower magnification is suitable when a wide field of view is required, while higher magnification is suitable when more precise procedures are needed.
• Working distance: This refers to the distance between the loupe and the treatment area. A longer distance provides a wider field of view and greater depth of field.
Conversely, as the distance becomes closer, the field of view becomes narrower, but detailed observation becomes easier.

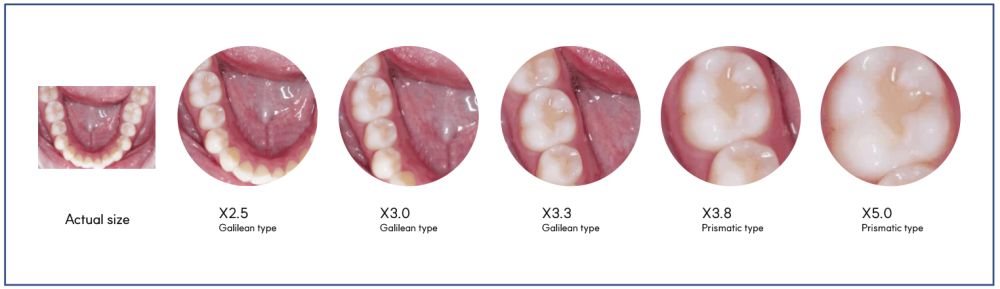

2. Magnification characteristics by loupe type
• X2.5: The lowest magnification, lightweight, providing a wide field of view and deep depth of field. Ideal for procedures requiring frequent movement and
can be used universally in various clinical situations.
• X3.0: Provides higher precision than 2.5x while maintaining similar weight, offering both practicality and convenience.
• X3.3: Designed for more precise procedures, allowing clearer identification of fine details.
• X3.8: Suitable for complex procedures such as endodontic treatment or implant surgery. Requires time to adapt due to its narrower field of view,
but facilitates identification of fine structures.
• X5.0: The highest magnification, allowing highly detailed observation of oral structures, ideal for procedures such as endodontic treatment or crown preparation.
However, its narrow field of view limits simultaneous treatment of multiple teeth.
Generally, X2.5 or X3.0 magnification is recommended for beginners, and after gaining experience,
many practitioners transition to higher magnification products above X3.3.

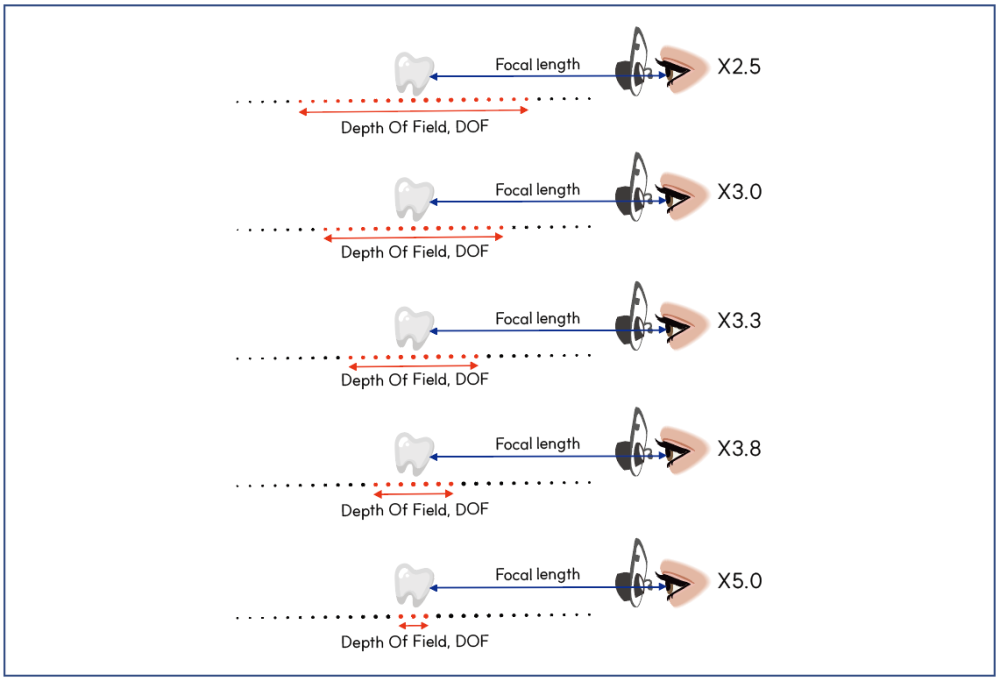

3. Loupe selection by focal distance and depth of field
Higher magnification is not always better. High magnification is advantageous for detailed observation but results in a narrower field of view,
while lower magnification is advantageous for securing a wider field of view.
When choosing loupes, it is essential to consider not only magnification but also optical factors such as focal distance and depth of field.
Choosing a configuration and balance suitable for the intended purpose is crucial.
4. Effects and benefits of using loupes
The precision of dental treatment is largely influenced by the extent of secured visibility.
When using loupes, the following key benefits can be expected:
• Enhanced visibility: Oral structures and lesions can be observed more clearly and in a magnified state.
• Improved diagnostic accuracy: Enables early detection of micro-lesions such as cracks and proximal caries.
• Reduced treatment time: Allows efficient movements, thereby shortening treatment time.
• Reduced practitioner fatigue: Corrects posture and alleviates visual strain, reducing the burden during long procedures.
SURGELOUP® provides optimized loupe solutions
for efficient dental treatment and a healthy
working environment for clinicians.
